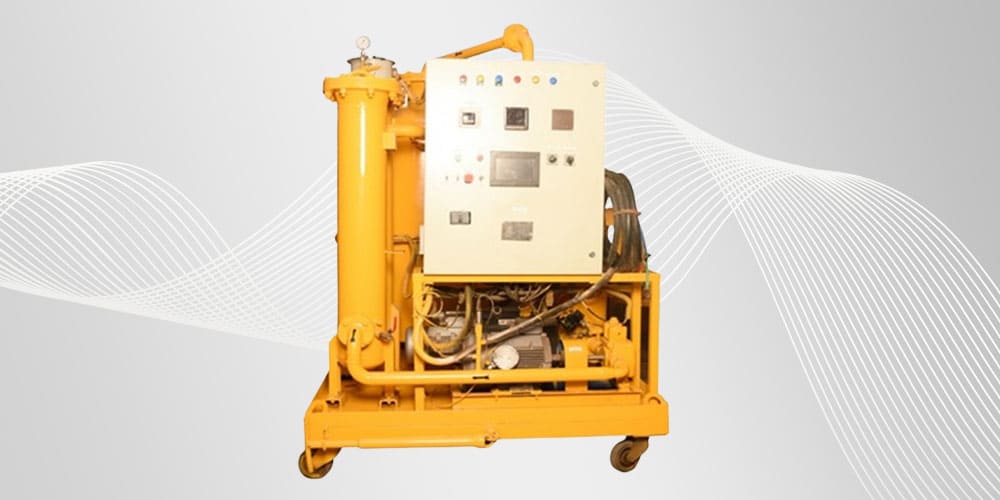

70 LPM 2 Stage Oil Purifier Machine with Heater
70 LPM 2 Stage Oil Purifier Machine with Heater
The 70 LPM 2-stage oil purifier machine with heater, manufactured by Absolute Filtration Services Pvt. Ltd., efficiently removes moisture, gases, and impurities from transformer oil, enhancing insulation performance, extending equipment life, and ensuring reliable operation in industrial and power sector applications.
Product Specification
| Specification | Details |
|---|---|
| Design Principal | Low Vacuum Dehydration Purification |
| Fluid Circulation Rate | 70 LPM |
| Operating Viscosity | 100 cSt (Maximum) |
| Oil Type | Hydraulic oil, lube oil & mineral oil |
| Coarse Filter Rating | 10µm GF media |
| Fine Filter Rating | 05µm GF media (customized) |
| Power Supply | 415V AC 3PH |
| Heater | 12 KW |
| Suction Hose | 25 NB SAE100R1 |
| Discharge Hose | 25 NB SAE100R1 |
| Oil Parameter | Unit removes 100% free water & gases, 85% dissolved water & gases |
| Safety Features | All safety interlocks |
Product Features
Efficient dual-stage filtration removes contaminants and moisture, compact portable design ensures easy operation, improves oil quality, extends equipment life.
Short Features
Flow Capacity (70 LPM)
Filters around 70 liters of oil per minute, suitable for medium to large industrial applications.
2-Stage Filtration System
Uses dual filtration (coarse + fine filters) to remove particles and impurities efficiently.
Built-in Heater System
Oil is heated (usually 50–80°C) to remove moisture and improve filtration efficiency.
Short Information
A 70 LPM 2-stage oil purifier with heater is an advanced industrial machine used to clean, heat, and purify oil such as transformer oil, hydraulic oil, and lubricating oil.
The process includes :
Heating the oil to reduce viscosity
Filtering in two stages to remove particles
Vacuum treatment to remove moisture and gases
