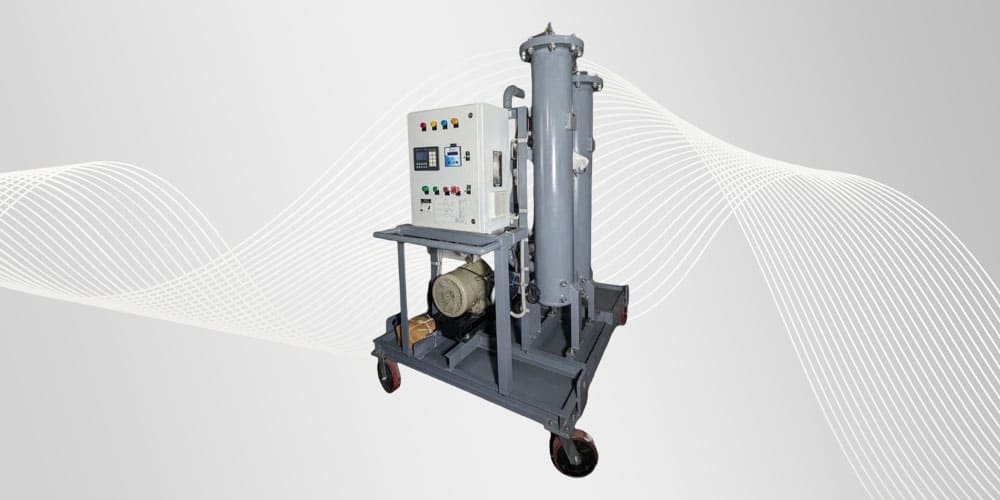

500 LPM 3 Stage Filtration Machine
500 LPM 3 Stage Filtration Machine
The 500 LPM 3-stage filtration machine by Absolute Filtration Services Pvt. Ltd. is designed for efficient water purification. It uses multi-level filtration to remove impurities, ensuring clean, safe output for industrial or commercial applications with reliable performance and durable construction.
Product Specification
| Specification | Details |
|---|---|
| Design Principal | Mechanical Filtration |
| Fluid Circulation Rate | 500 LPM |
| Operating Viscosity | 100 cSt (Maximum) |
| Oil Type | Hydraulic and Mineral oil, Transformer oil |
| Coarse Filter Rating | 25µm, 10µm GF media |
| Fine Filter Rating | 05µm GF media |
| Power Supply | 415V AC 3PH |
| Suction Hose | 80 NB SAE100R1 |
| Discharge Hose | 80 NB SAE100R1 |
| Oil Parameter | Reduction of solid contaminations |
| Safety Features | All safety interlocks |
Product Features
Efficient dual-stage filtration removes contaminants and moisture, compact portable design ensures easy operation, improves oil quality, extends equipment life.
Multi-Stage Filtration (3-Step Cleaning)
This machine uses three filtration stages to clean the fluid (water or oil).
Stage 1 removes large particles like dust and dirt.
Stage 2 removes smaller impurities and chemicals.
Stage 3 removes very fine particles and contaminants.
High Flow Capacity (500 LPM)
The machine can filter 500 liters per minute, making it suitable for industrial use.
Ideal for factories, plants, and heavy-duty operations.
Saves time by processing large volumes quickly.
