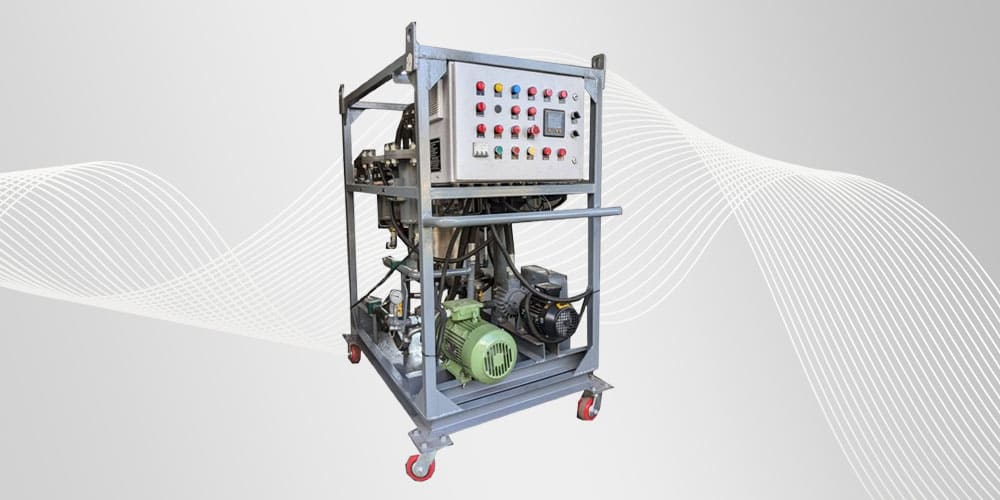

40 LPM 2 Stage Oil Purifier Machine
40 LPM 2 Stage Oil Purifier Machine
The Absolute Filtration Services Pvt. Ltd. 40 LPM 2-stage oil purifier machine efficiently removes contaminants, moisture, and sludge from industrial oils, enhancing performance and lifespan. Its dual-stage filtration ensures high purity, reliability, and cost-effective maintenance for hydraulic and lubrication systems.
Product Specification
| Specification | Details |
|---|---|
| Design Principal | Low Vacuum Dehydration Purification |
| Fluid Circulation Rate | 40 LPM |
| Operating Viscosity | 100 cSt (Maximum) |
| Oil Type | Hydraulic oil, lube oil & mineral oil |
| Coarse Filter Rating | 10µm GF media |
| Fine Filter Rating | 05µm GF media (customized) |
| Power Supply | 415V AC 3PH |
| Suction Hose | 25 NB SAE100R1 |
| Discharge Hose | 25 NB SAE100R1 |
| Oil Parameter | Unit removes 100% free water & gases, 85% dissolved water & gases |
| Safety Features | All safety interlocks |
Product Features
Efficient dual-stage filtration removes contaminants and moisture, compact portable design ensures easy operation, improves oil quality, extends equipment life.
Short Features (with info)
40 LPM Flow Capacity
Filters around 40 liters of oil per minute, suitable for medium industrial operations like hydraulic and transformer oil cleaning.
2-Stage Filtration System
Uses two filtration stages (coarse + fine filters) to remove both large and very small particles from oil efficiently.
High Filtration Accuracy
Can filter impurities up to 5 micron or lower, ensuring cleaner and reusable oil.
Contaminant Removal
Removes dust, sludge, metal particles, and moisture, improving oil quality and machine life.
Short Info (Overview)
A 40 LPM 2-stage oil purifier machine is an industrial equipment used to clean and purify used oil. It works by passing oil through two filtering stages, which remove impurities and improve oil performance.
Common uses:
Transformer oil filtration
Hydraulic systems
Lubrication systems
Benefits:
Increases oil life
Reduces maintenance cost
Improves machine efficiency
