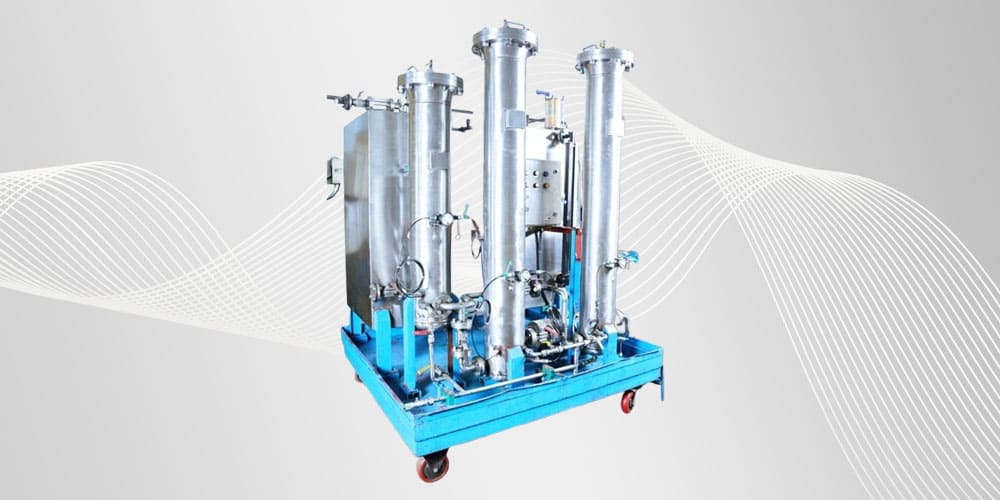

150 LPM 2 Stage Oil Purifier Machine
150 LPM 2 Stage Oil Purifier Machine
150 LPM 2-stage oil purifier machine with heater, manufactured by ABSOLUTE FILTRATION SERVICES Pvt. Ltd., effectively removes water, gases, and contaminants from oils, enhancing lubrication quality, protecting machinery, extending service life, and ensuring consistent, efficient performance in industrial operations.
Product Specification
| Specification | Details |
|---|---|
| Design Principal | Low Vacuum Dehydration Purification |
| Fluid Circulation Rate | 150 LPM |
| Operating Viscosity | 100 cSt (Maximum) |
| Oil Type | Hydraulic oil, lube oil & mineral oil |
| Coarse Filter Rating | 10µm GF media |
| Fine Filter Rating | 05µm GF media |
| Power Supply | 415V AC 3PH |
| Suction Hose | 50 NB SAE100R1 |
| Discharge Hose | 50 NB SAE100R1 |
| Oil Parameter | Unit removes 100% free water & gases, 85% dissolved water & gases |
| Safety Features | All safety interlocks |
Product Features
Efficient dual-stage filtration removes contaminants and moisture, compact portable design ensures easy operation, improves oil quality, extends equipment life.
Short Features
High Flow Capacity (150 LPM)
Can filter 150 liters of oil per minute, suitable for heavy industrial operations.
2-Stage Filtration System
Uses double-stage filters (coarse + fine) to remove both large and very small particles effectively.
Removes Impurities Efficiently
Eliminates dust, sludge, metal particles, and contaminants from oil for better quality.
Heavy-Duty Industrial Design
Built with strong materials (like stainless steel) for continuous industrial use.
Improves Oil Life & Machine Performance
Helps reduce wear, increase efficiency, and lower maintenance cost.
Short Information
A 150 LPM 2-stage oil purifier machine is a high-capacity industrial system used to clean and purify large volumes of oil such as transformer oil, hydraulic oil, and lubricating oil.
It works by passing oil through two filtration stages, removing impurities and improving oil quality. These machines are widely used in :
Power plants
Steel and heavy industries
Cement plants
Hydraulic systems
